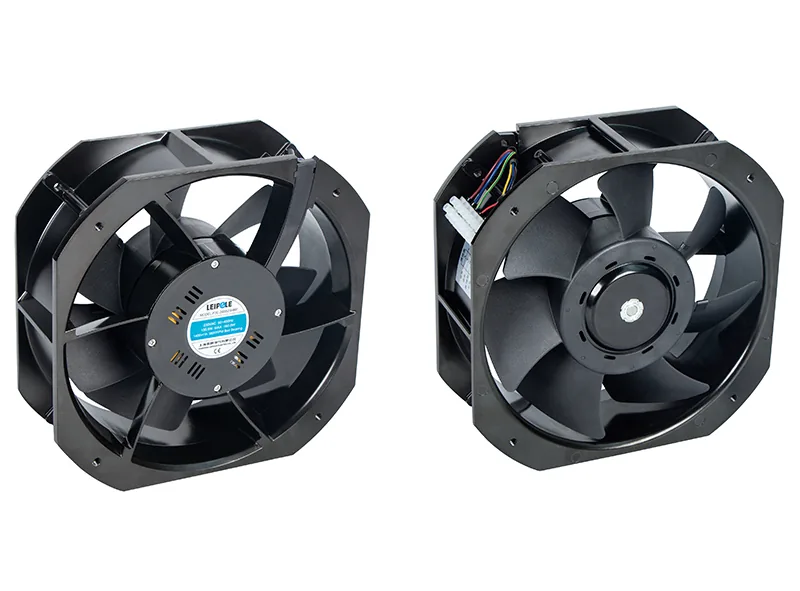

LEIPOLELEIPOLE F2E-260B23HR EC Axial Fan, 225×225×80mm, Ball Bearing, RD, Cabinet Cooling LP-F2E-260B23HR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

LEIPOLE F2E-260B23HR EC Axial Fan, 225×225×80mm, Ball Bearing, RD, Cabinet Cooling

SKULP-F2E-260B23HR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions225×225×80mm
VoltageAC 230V
Power90.0W, Max: 120W
Air Flow1200m³/h
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE F2E-260B23HR is a high-performance large EC axial fan from the F2E series, engineered for powerful ventilation and efficient heat dissipation in large electrical cabinets, industrial equipment, communication enclosures and heavy-duty cooling systems. It delivers strong airflow and stable long-term operation for demanding thermal management scenarios. Core Product Features EC motor with Rotation Detection (RD) for real-time operation status monitoring. Dual ball bearing structure ensures long service life, low noise and stable continuous operation. Wide voltage and frequency input design for strong compatibility with global power systems. UL94-V0 flame-retardant material and CE ….

Key data: dimensions 225×225×80mm; voltage AC 230V; power 90.0W, Max: 120W; air flow 1200m³/h.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions225×225×80mm

VoltageAC 230V

Power90.0W, Max: 120W

Air Flow1200m³/h

CertificationCE

ModelF2E-260B23HR

Order Number2029.017

Motor TypeEC

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
F2E-260B23HR
Order Number
2029.017
Dimensions
225×225×80mm
Motor Type
EC
Bearing
Ball
Voltage
AC 230V
Frequency
50~400Hz
Power
90.0W, Max: 120W
Speed
3300r/min
Air Flow
1200m³/h
Noise
70dB
Weight
2317g
Function
Rotation Detection
Certification
CE

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-F2E-260B23HR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
