LEIPOLELEIPOLE F2E-200B23VRP EC Axial Fan, 202×202×60.1mm, Ball Bearing, RD+PWM, Cabinet Cooling LP-F2E-200B23VRP
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

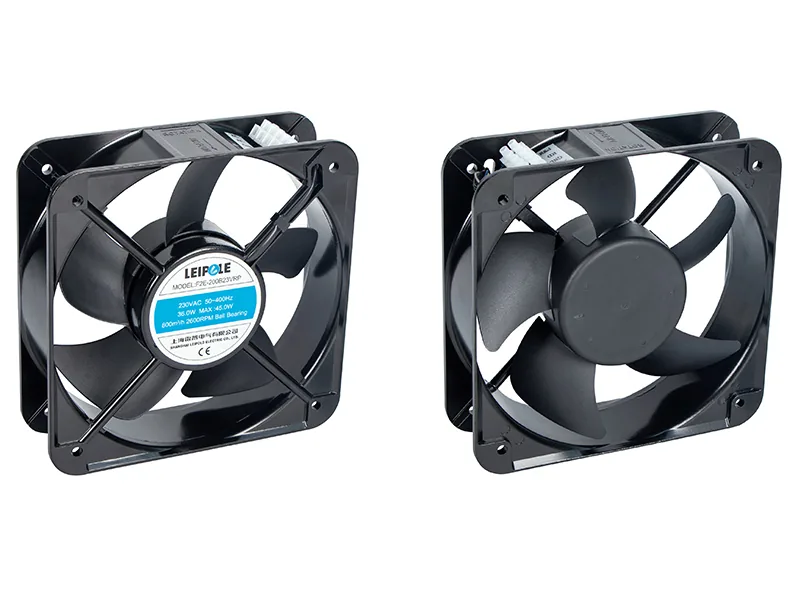

LEIPOLE F2E-200B23VRP EC Axial Fan, 202×202×60.1mm, Ball Bearing, RD+PWM, Cabinet Cooling

SKULP-F2E-200B23VRP

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions202×202×60.1mm
VoltageAC 230V
Power36.0W, Max: 45W
Air Flow800m³/h
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE F2E-200B23VRP is a high-performance EC axial fan from the F2E series, designed for powerful ventilation and efficient heat dissipation in large electrical cabinets, automation equipment, communication enclosures and industrial cooling systems. It delivers stable high airflow and reliable long-term operation for heavy-duty thermal management. Core Product Features EC motor with Rotation Detection (RD) + PWM speed regulation for intelligent and energy-saving operation. Dual ball bearing structure ensures long service life, low noise and stable continuous operation. Wide voltage and frequency input design for strong compatibility with global power systems. UL94-V0 flame-retardant ….

Key data: dimensions 202×202×60.1mm; voltage AC 230V; power 36.0W, Max: 45W; air flow 800m³/h.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions202×202×60.1mm

VoltageAC 230V

Power36.0W, Max: 45W

Air Flow800m³/h

CertificationCE

ModelF2E-200B23VRP

Order Number2029.005

Motor TypeEC

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
F2E-200B23VRP
Order Number
2029.005
Dimensions
202×202×60.1mm
Motor Type
EC
Bearing
Ball
Voltage
AC 230V
Frequency
50~400Hz
Power
36.0W, Max: 45W
Speed
2600r/min
Air Flow
800m³/h
Noise
60dB
Weight
905g
Function
Rotation Detection + PWM
Certification
CE

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-F2E-200B23VRP

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
