LEIPOLELEIPOLE F2E-180B23HR EC Axial Fan, 180.5×180.5×61mm, Ball Bearing, RD, Cabinet Cooling LP-F2E-180B23HR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

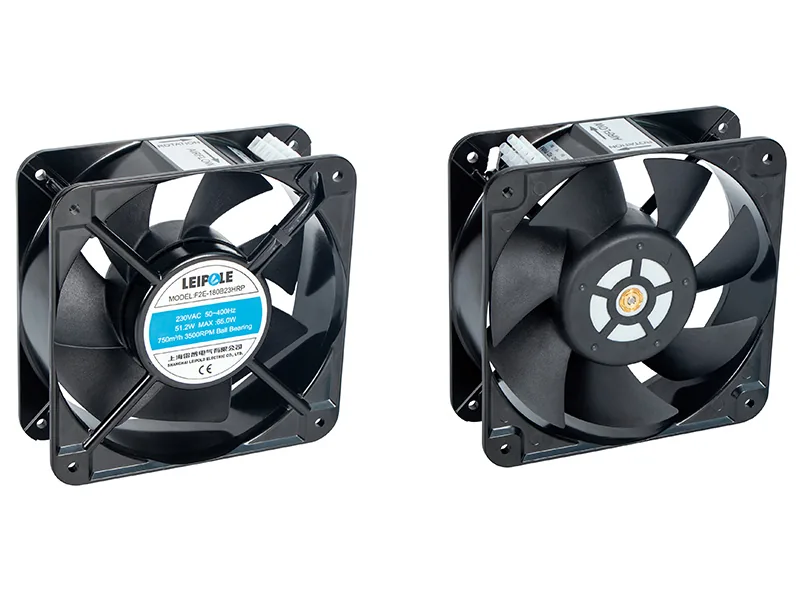

LEIPOLE F2E-180B23HR EC Axial Fan, 180.5×180.5×61mm, Ball Bearing, RD, Cabinet Cooling

SKULP-F2E-180B23HR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions180.5×180.5×61mm
VoltageAC 230V
Power48.3W, Max: 65W
Air Flow750m³/h
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE F2E-180B23HR is a high-performance EC axial fan from the F2E series, designed for powerful ventilation and efficient heat dissipation in electrical cabinets, automation equipment, communication enclosures and large cooling systems. It delivers stable high airflow and reliable long-term operation for industrial thermal management. Core Product Features EC motor with Rotation Detection (RD) for real-time operation status monitoring. Dual ball bearing structure ensures long service life, low noise and stable continuous operation. Wide voltage and frequency input design for strong compatibility with global power systems. UL94-V0 flame-retardant material and CE certification guarantee ….

Key data: dimensions 180.5×180.5×61mm; voltage AC 230V; power 48.3W, Max: 65W; air flow 750m³/h.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions180.5×180.5×61mm

VoltageAC 230V

Power48.3W, Max: 65W

Air Flow750m³/h

CertificationCE

ModelF2E-180B23HR

Order Number2029.013

Motor TypeEC

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
F2E-180B23HR
Order Number
2029.013
Dimensions
180.5×180.5×61mm
Motor Type
EC
Bearing
Ball
Voltage
AC 230V
Frequency
50~400Hz
Power
48.3W, Max: 65W
Speed
3500r/min
Air Flow
750m³/h
Noise
64dB
Weight
850g
Function
Rotation Detection
Certification
CE
