LEIPOLELEIPOLE F2E-150B23VR EC Axial Fan, 152×171.5×51.5mm, Ball Bearing, RD, Cabinet Cooling LP-F2E-150B23VR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

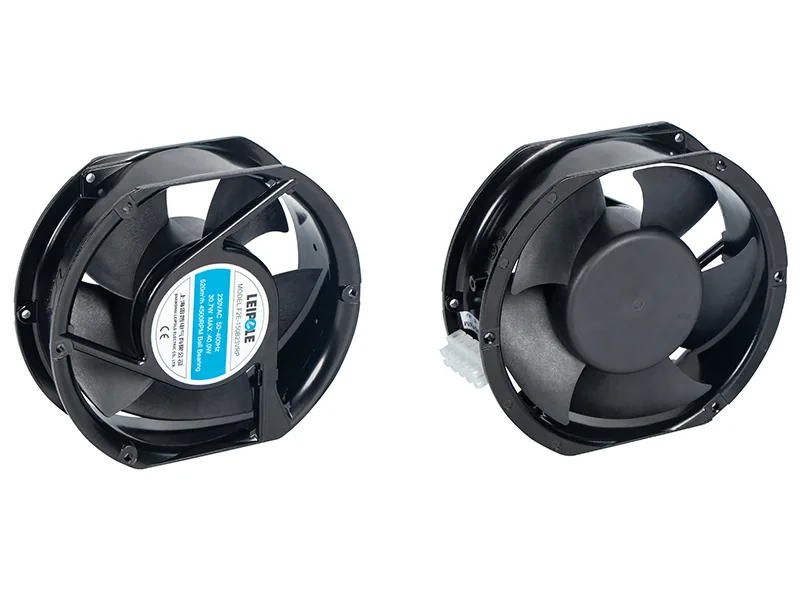

LEIPOLE F2E-150B23VR EC Axial Fan, 152×171.5×51.5mm, Ball Bearing, RD, Cabinet Cooling

SKULP-F2E-150B23VR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions152×171.5×51.5mm
VoltageAC 230V
Power29.8W, Max: 40W
Air Flow520m³/h
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE F2E-150B23VR is a high-performance EC axial fan from the F2E series, designed for powerful ventilation and efficient heat dissipation in electrical cabinets, automation equipment, communication enclosures and medium-size cooling systems. It delivers stable airflow and reliable long-term operation for industrial thermal management. Core Product Features EC motor with Rotation Detection (RD) for real-time operation status monitoring. Dual ball bearing ensures long service life, low noise and stable continuous operation. Wide voltage and frequency input design for strong compatibility with global power systems. UL94-V0 flame-retardant material and CE certification guarantee safe use in ….

Key data: dimensions 152×171.5×51.5mm; voltage AC 230V; power 29.8W, Max: 40W; air flow 520m³/h.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions152×171.5×51.5mm

VoltageAC 230V

Power29.8W, Max: 40W

Air Flow520m³/h

CertificationCE

ModelF2E-150B23VR

Order Number2029.012

Motor TypeEC

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
F2E-150B23VR
Order Number
2029.012
Dimensions
152×171.5×51.5mm
Motor Type
EC
Bearing
Ball
Voltage
AC 230V
Frequency
50~400Hz
Power
29.8W, Max: 40W
Speed
4500r/min
Air Flow
520m³/h
Noise
60dB
Weight
700g
Function
Rotation Detection
Certification
CE

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-F2E-150B23VR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
