LEIPOLELEIPOLE F2E-1238B23HRP EC Axial Fan, 120×120×38.2mm, Ball Bearing, RD+PWM, Cabinet Cooling LP-F2E-1238B23HRP
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

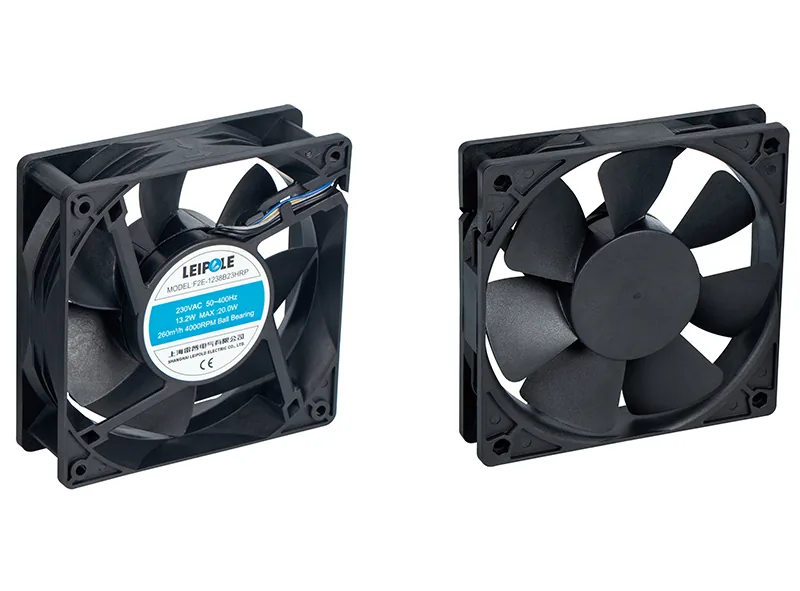

LEIPOLE F2E-1238B23HRP EC Axial Fan, 120×120×38.2mm, Ball Bearing, RD+PWM, Cabinet Cooling

SKULP-F2E-1238B23HRP

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions120×120×38.2mm
VoltageAC 230V
Power13.2W, Max: 20W
Air Flow260m³/h
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE F2E-1238B23HRP is a high-performance EC axial fan belonging to the compact F2E series. It delivers strong airflow and efficient heat dissipation for electrical cabinets, automation equipment, communication enclosures, and compact electronic devices, ensuring stable and reliable operation of internal components. Core Product Features EC motor with Rotation Detection (RD) + PWM speed regulation for intelligent and energy-saving operation. Dual ball bearing structure ensures long service life, low noise, and stable continuous operation. Wide voltage and frequency input design for strong compatibility with global power systems. UL94-V0 flame-retardant material and CE certification ….

Key data: dimensions 120×120×38.2mm; voltage AC 230V; power 13.2W, Max: 20W; air flow 260m³/h.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions120×120×38.2mm

VoltageAC 230V

Power13.2W, Max: 20W

Air Flow260m³/h

CertificationCE

ModelF2E-1238B23HRP

Order Number2029.002

Motor TypeEC

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
F2E-1238B23HRP
Order Number
2029.002
Dimensions
120×120×38.2mm
Motor Type
EC
Bearing
Ball
Voltage
AC 230V
Frequency
50~400Hz
Power
13.2W, Max: 20W
Speed
4000r/min
Air Flow
260m³/h
Noise
50dB
Weight
286g
Function
Rotation Detection + PWM
Certification
CE

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-F2E-1238B23HRP

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
