LEIPOLELEIPOLE F2E-1225B23VR EC Axial Fan, 120×120×25.3mm, Ball Bearing, RD, Cabinet Cooling LP-F2E-1225B23VR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

LEIPOLE F2E-1225B23VR EC Axial Fan, 120×120×25.3mm, Ball Bearing, RD, Cabinet Cooling

SKULP-F2E-1225B23VR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions120×120×25.3mm
VoltageAC 230V
Power2.6W, Max: 3.5W
Air Flow120m³/h
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

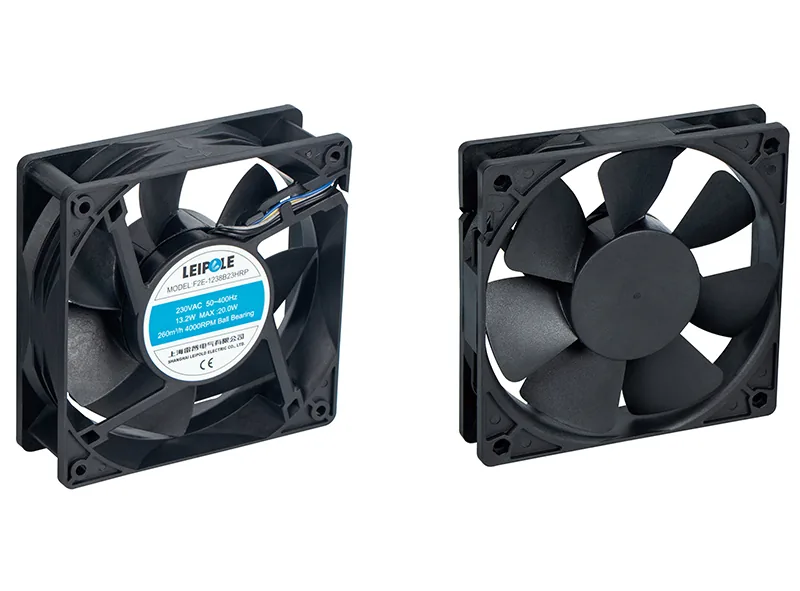

LEIPOLE F2E-1225B23VR is a slim EC axial fan designed for high-efficiency ventilation and precise heat dissipation in electrical cabinets, automation panels, telecom enclosures and compact electronic equipment. Its ultra-thin profile saves installation space while delivering stable airflow and reliable long-term operation. Core Product Features EC motor with Rotation Detection (RD) for real-time operation status monitoring. Dual ball bearing ensures long service life, low noise and stable performance. IP44 protection grade effectively resists dust and splashing water in industrial environments. Compliant with IEC61858 Grade F insulation standard, high voltage withstand capability. Wide ….

Key data: dimensions 120×120×25.3mm; voltage AC 230V; power 2.6W, Max: 3.5W; air flow 120m³/h.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions120×120×25.3mm

VoltageAC 230V

Power2.6W, Max: 3.5W

Air Flow120m³/h

CertificationCE

ModelF2E-1225B23VR

Order Number2029.010

Motor TypeEC

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
F2E-1225B23VR
Order Number
2029.010
Dimensions
120×120×25.3mm
Motor Type
EC
Bearing
Ball
Voltage
AC 230V
Frequency
50~400Hz
Power
2.6W, Max: 3.5W
Speed
2600r/min
Air Flow
120m³/h
Noise
37dB
Weight
180g
Function
Rotation Detection
Certification
CE

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-F2E-1225B23VR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
