LEIPOLELEIPOLE 8R100120 Wiring Duct, 100x120mm, for Industrial Electrical Enclosure Wiring Management LP-8R100120
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE 8R100120 Wiring Duct, 100x120mm, for Industrial Electrical Enclosure Wiring Management

SKULP-8R100120

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Size (W x H)100 x 120 mm
Color optionsGray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)
Model8R100120
MaterialLead-free rigid PVC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

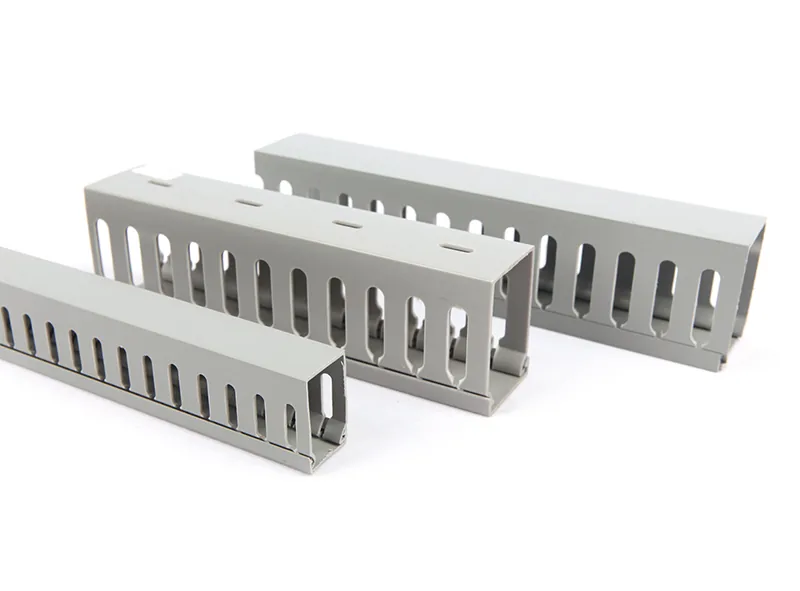

LEIPOLE 8R100120 wiring duct is made of lead-free rigid PVC material. It uses a wide slot and finger design that improves sidewall rigidity and supports various wire bundle sizes. The product includes DIN 43 659 mounting holes and is provided with duct and cover as a complete set. Key Features & Advantages Lead-free rigid PVC material for industrial electrical applications Wide slot and finger design enhances sidewall stability UL94 V-0 flammability rating for safe operation UL recognized continuous operating temperature at 50°C Equipped with DIN 43 659 standard mounting holes Duct and cover packed together for complete installation Applications Ventilation technology Suitable for wiring ….

Key data: size 100 x 120 mm; color options Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005); model 8R100120; material Lead-free rigid PVC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Size (W x H)100 x 120 mm

Color optionsGray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)

Model8R100120

MaterialLead-free rigid PVC

Flammability ratingUL94 V-0

Continuous use temperature50°C (122°F), UL Recognized

Base typeLarge Base

Standard length2 meters

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
8R100120
Product type
Wiring Duct (Cable Management Trunking)
Material
Lead-free rigid PVC
Flammability rating
UL94 V-0
Continuous use temperature
50°C (122°F), UL Recognized
Size (W x H)
100 x 120 mm
Base type
Large Base
Standard length
2 meters
Slot design
Wide slot/finger design for enhanced sidewall rigidity and compatibility with larger wire bundles
Mounting standard
Pre-punched with DIN 43 659 mounting holes
Color options
Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)
