LEIPOLELEIPOLE 4R2525 Wiring Duct, 25x25mm, for Industrial Electrical Enclosure Wiring Management LP-4R2525
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE 4R2525 Wiring Duct, 25x25mm, for Industrial Electrical Enclosure Wiring Management

SKULP-4R2525

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Size (W x H)25 x 25 mm
Color optionsGray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)
Model4R2525
MaterialLead-free rigid PVC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

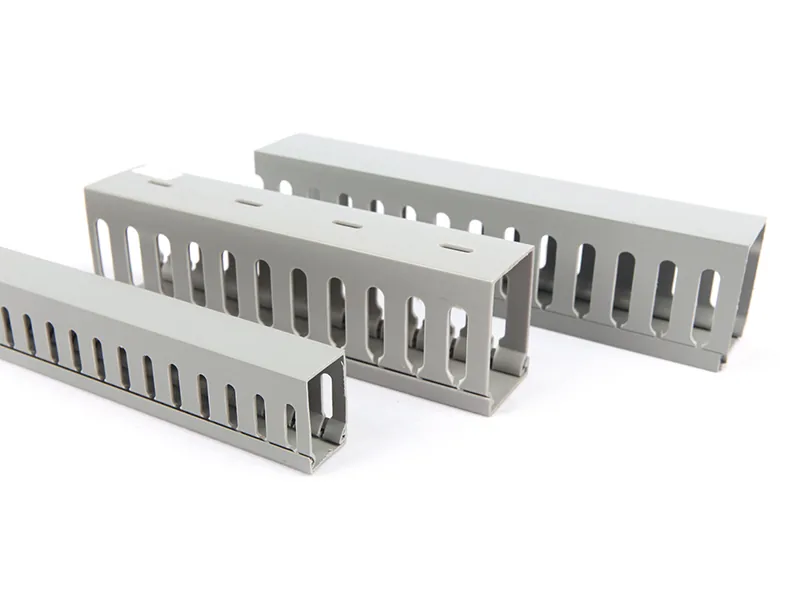

LEIPOLE 4R2525 wiring duct is constructed with lead-free rigid PVC material. It adopts wide slot and finger design to enhance sidewall rigidity, and is compatible with various wire bundle sizes. The product is equipped with DIN 43 659 mounting holes for stable installation. Key Features & Advantages Lead-free rigid PVC construction for safe industrial use Wide slot and finger design improves sidewall rigidity UL94 V-0 flammability rating ensures operational safety UL recognized continuous use temperature at 50°C Matched DIN 43 659 mounting holes for easy installation Supplied with duct and cover packaged together Applications Ventilation technology Suitable for wiring organization in ….

Key data: size 25 x 25 mm; color options Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005); model 4R2525; material Lead-free rigid PVC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Size (W x H)25 x 25 mm

Color optionsGray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)

Model4R2525

MaterialLead-free rigid PVC

Flammability ratingUL94 V-0

Continuous use temperature50°C (122°F), UL Recognized

Q (mm)4 mm

P (mm)6 mm

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
4R2525
Product type
Wiring Duct (Cable Management Trunking)
Material
Lead-free rigid PVC
Flammability rating
UL94 V-0
Continuous use temperature
50°C (122°F), UL Recognized
Size (W x H)
25 x 25 mm
Q (mm)
4 mm
P (mm)
6 mm
Base type
Small Base
Standard length
2 meters
Slot design
Wide slot/finger design for enhanced sidewall rigidity and compatibility with larger wire bundles
Mounting standard
Pre-punched with DIN 43 659 mounting holes
Color options
Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)
Package quantity
100 pcs

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-4R2525

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
