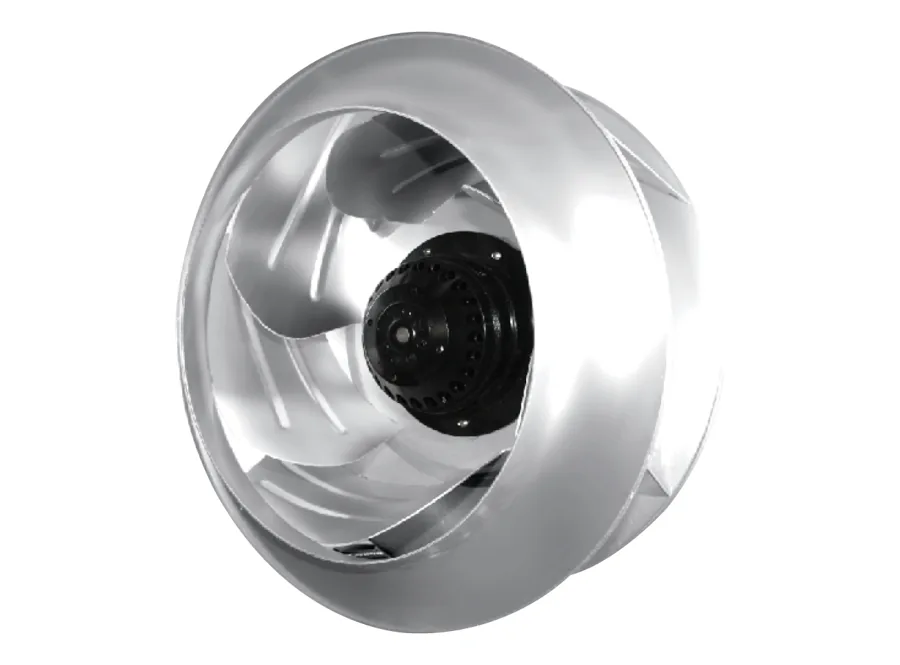

LEIPOLE355FLW4A: 2580m³/h Centrifugal Air Blower, 220V, Aluminum Impeller LP-355FLW4A
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

355FLW4A: 2580m³/h Centrifugal Air Blower, 220V, Aluminum Impeller

SKULP-355FLW4A

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow2580m³/h
Rated Current0.78/0.80 A
Input Power170/230 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 2580m³/h; rated current 0.78/0.80 A; input power 170/230 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow2580m³/h

Rated Current0.78/0.80 A

Input Power170/230 W

DimensionØ355x162mm

Model355FLW4A

Part Number355FLW4A

Order Code2019.02

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
355FLW4A
Part Number
355FLW4A
Order Code
2019.02
Rate Voltage
220V
Air Flow
2580m³/h
Speed
1370 r/min
Static Pressure
410PA
Rated Current
0.78/0.80 A
Input Power
170/230 W
Motor Type
Capacitor Start Induction Motor
Noise Level
65 dB
Dimension
Ø355x162mm
Weight
4750g
Impeller
Aluminum
Operating temperature
-40°C~+80°C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-355FLW4A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
