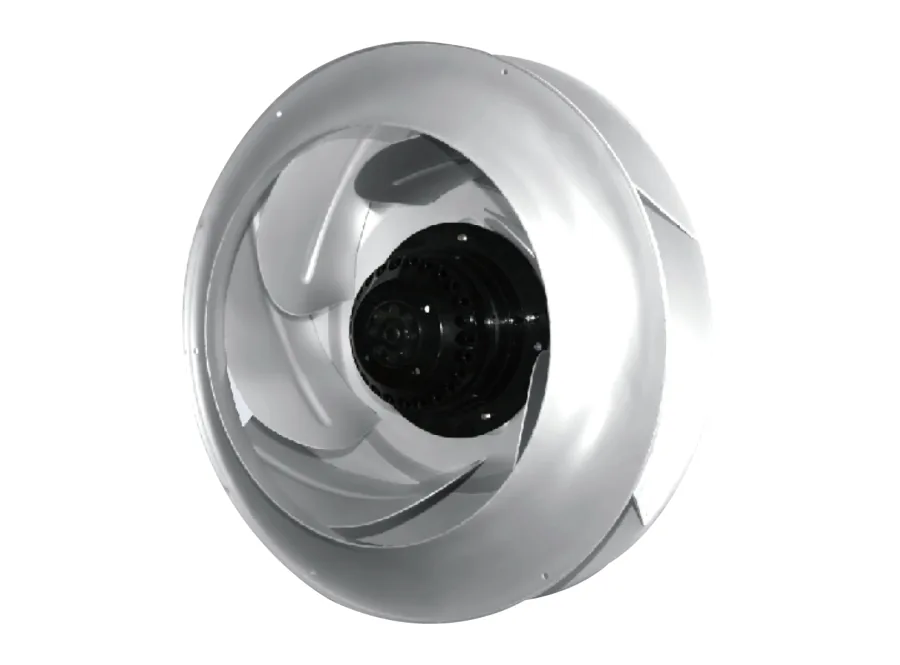

LEIPOLE350FLW4A: 2118m³/h centrifugal blower fan suppliers, 220V, Aluminum Impeller LP-350FLW4A
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

350FLW4A: 2118m³/h centrifugal blower fan suppliers, 220V, Aluminum Impeller

SKULP-350FLW4A

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow1848/2118m³/h
Rated Current0.46/0.63 A
Input Power105/145 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 1848/2118m³/h; rated current 0.46/0.63 A; input power 105/145 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow1848/2118m³/h

Rated Current0.46/0.63 A

Input Power105/145 W

DimensionØ355x130mm

Model350FLW4A

Part Number350FLW4A

Order Code2019.017

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
350FLW4A
Part Number
350FLW4A
Order Code
2019.017
Rate Voltage
220V
Air Flow
1848/2118m³/h
Speed
1400/1600 r/min
Static Pressure
350/460PA
Rated Current
0.46/0.63 A
Input Power
105/145 W
Motor Type
Capacitor Start Induction Motor
Noise Level
63/66 dB
Dimension
Ø355x130mm
Weight
4700g
Impeller
Aluminum
Operating temperature
-40°C~+80°C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-350FLW4A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
