LEIPOLELEIPOLE 310FLW2VR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling LP-310FLW2VR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

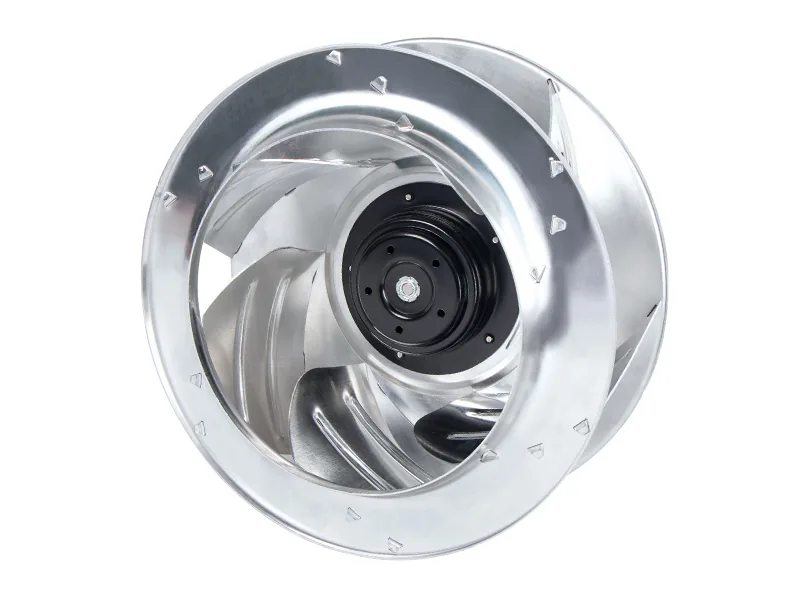

LEIPOLE 310FLW2VR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

SKULP-310FLW2VR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (W×H)Ø316×184mm
CertificationCE
IP RatingIP44
Rated Voltage230V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 310FLW2VR is a large-capacity centrifugal fan from the FLW series. It provides stable forced ventilation and efficient heat dissipation for large industrial electrical enclosures, medium-scale HVAC systems, and high-power electrical equipment. The integrated structure ensures consistent airflow and reliable long-hour operation in demanding industrial environments. Core Product Features Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety. Ball bearing structure reduces operational wear and supports extended service life. IP44 ingress protection rating, compatible with a wide temperature and humidity range. Compliant with IEC61858 ….

Key data: dimensions Ø316×184mm; certification CE; ip rating IP44; rated voltage 230V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (W×H)Ø316×184mm

CertificationCE

IP RatingIP44

Rated Voltage230V

Input Power139.2W, Max: 180W

Air Flow2200m³/h

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60Hz

Model310FLW2VR

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
310FLW2VR
Order Code
2030.016
Dimensions (W×H)
Ø316×184mm
Certification
CE
IP Rating
IP44
Motor Type
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage
230V
Frequency
50~400Hz
Input Power
139.2W, Max: 180W
Speed
1600r/min
Air Flow
2200m³/h
Noise
62dB
Weight
2689g
Function
RD (Rotation Detection)
Operation Temperature & Humidity Range
-30℃~+65℃, 0%~95%RH
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60Hz
Insulation Grade
IEC61858 Grade F

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-310FLW2VR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
