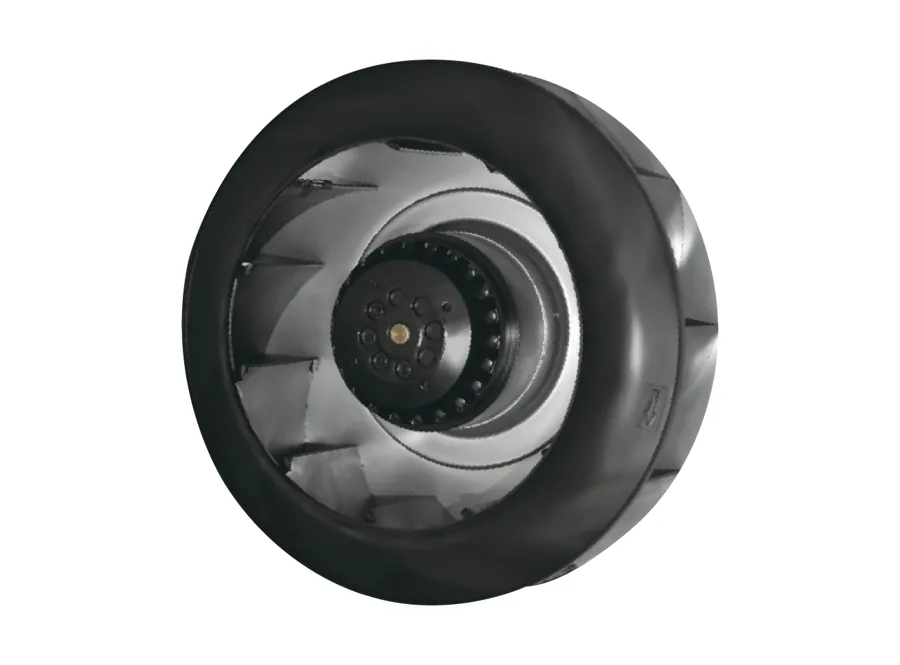

LEIPOLE280FLW2: 1992m³/h Industrial Centrifugal Blower Fan, 220V, Galvanized Steel LP-280FLW2
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

280FLW2: 1992m³/h Industrial Centrifugal Blower Fan, 220V, Galvanized Steel

SKULP-280FLW2

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow1992m³/h
Rated Current1.03/1.30 A
Input Power230/305 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 1992m³/h; rated current 1.03/1.30 A; input power 230/305 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow1992m³/h

Rated Current1.03/1.30 A

Input Power230/305 W

DimensionØ281x95mm

Model280FLW2

Part Number280FLW2

Order Code2019.013

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
280FLW2
Part Number
280FLW2
Order Code
2019.013
Rate Voltage
220V
Air Flow
1992m³/h
Speed
2550/2750 r/min
Static Pressure
700/750PA
Rated Current
1.03/1.30 A
Input Power
230/305 W
Motor Type
Capacitor Start Induction Motor
Noise Level
72/75 dB
Dimension
Ø281x95mm
Weight
3000g
Impeller
Galvanized steel sheets
Operating temperature
-40°C~+80°C
Humidity range
0%~95%
