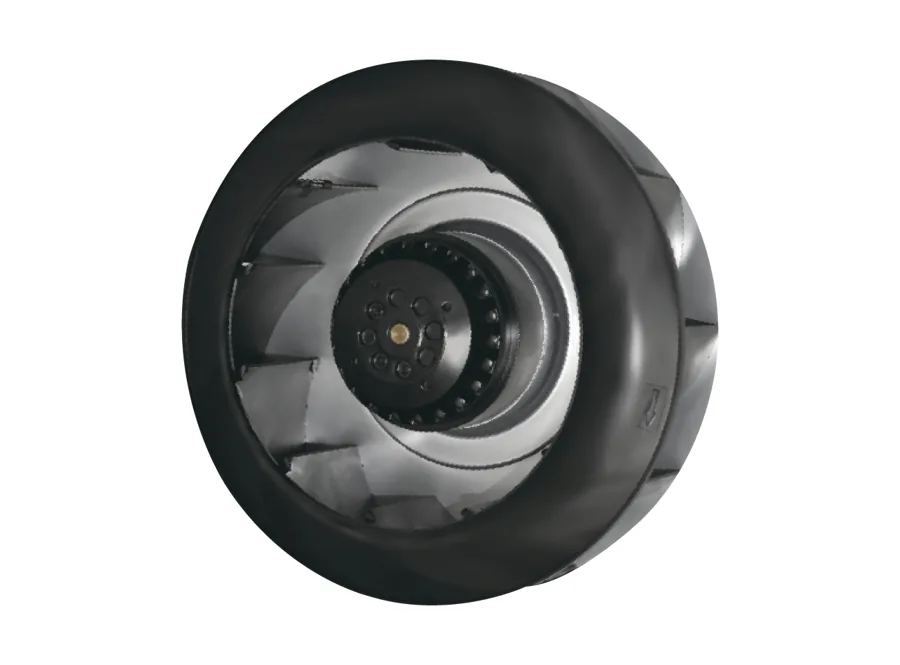

LEIPOLE250FLW4: 1524m³/h Centrifugal Blowers 380V, PA6+GF Impeller LP-250FLW4
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

250FLW4: 1524m³/h Centrifugal Blowers 380V, PA6+GF Impeller

SKULP-250FLW4

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage380V
Air Flow1452/1524m³/h
Rated Current0.38/0.49 A
Input Power152/205 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 380V; air flow 1452/1524m³/h; rated current 0.38/0.49 A; input power 152/205 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage380V

Air Flow1452/1524m³/h

Rated Current0.38/0.49 A

Input Power152/205 W

DimensionØ250×93.9mm

Model250FLW4

Part Number250FLW4

Order Code2019.012

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
250FLW4
Part Number
250FLW4
Order Code
2019.012
Rate Voltage
380V
Air Flow
1452/1524m³/h
Speed
2550/2750 r/min
Static Pressure
420/520PA
Rated Current
0.38/0.49 A
Input Power
152/205 W
Motor Type
Capacitor Start Induction Motor
Noise Level
74/76 dB
Dimension
Ø250×93.9mm
Weight
2700g
Impeller
PA6+GF
Operating temperature
-40°C~+80°C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-250FLW4

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
