LEIPOLELEIPOLE 250FLW2VRP EC Centrifugal Fan, IP44, RD+PWM, Industrial Enclosure Cooling LP-250FLW2VRP
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

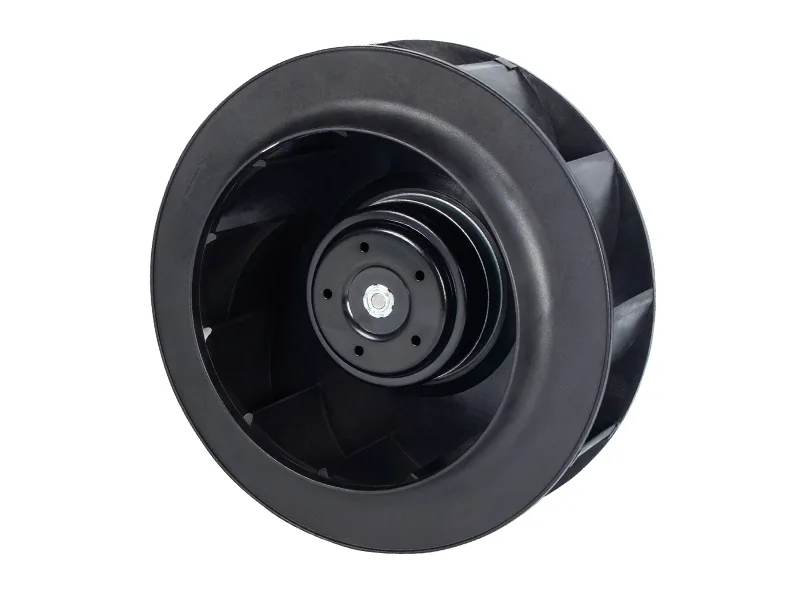

LEIPOLE 250FLW2VRP EC Centrifugal Fan, IP44, RD+PWM, Industrial Enclosure Cooling

SKULP-250FLW2VRP

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (W×H)Ø250×129mm
CertificationCE
IP RatingIP44
Rated Voltage230V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 250FLW2VRP is a large-capacity centrifugal fan from the FLW series. It provides stable forced ventilation and efficient heat dissipation for large industrial electrical enclosures, medium-scale HVAC systems, and high-power electrical equipment. The integrated structure ensures consistent airflow and reliable long-hour operation in demanding industrial environments. Core Product Features Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety. Ball bearing structure reduces operational wear and supports extended service life. IP44 ingress protection rating, compatible with a wide temperature and humidity range. Compliant with IEC61858 ….

Key data: dimensions Ø250×129mm; certification CE; ip rating IP44; rated voltage 230V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (W×H)Ø250×129mm

CertificationCE

IP RatingIP44

Rated Voltage230V

Input Power136.0W, Max: 180W

Air Flow1400m³/h

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60Hz

Model250FLW2VRP

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
250FLW2VRP
Order Code
2030.006
Dimensions (W×H)
Ø250×129mm
Certification
CE
IP Rating
IP44
Motor Type
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage
230V
Frequency
50~400Hz
Input Power
136.0W, Max: 180W
Speed
2900r/min
Air Flow
1400m³/h
Noise
72dB
Weight
2027g
Function
Rotation Detection+PWM (RD+PWM)
Operation Temperature & Humidity Range
-40℃~+80℃, 0%~95%RH
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60Hz
Insulation Grade
IEC61858 Grade F

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-250FLW2VRP

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
Heat-load sizing Fans, air conditioners and heaters sized from your enclosure data.Panel builder supply Components consolidated with the rest of the project order.Project support Submittals and delivery coordinated with your panel builder.
