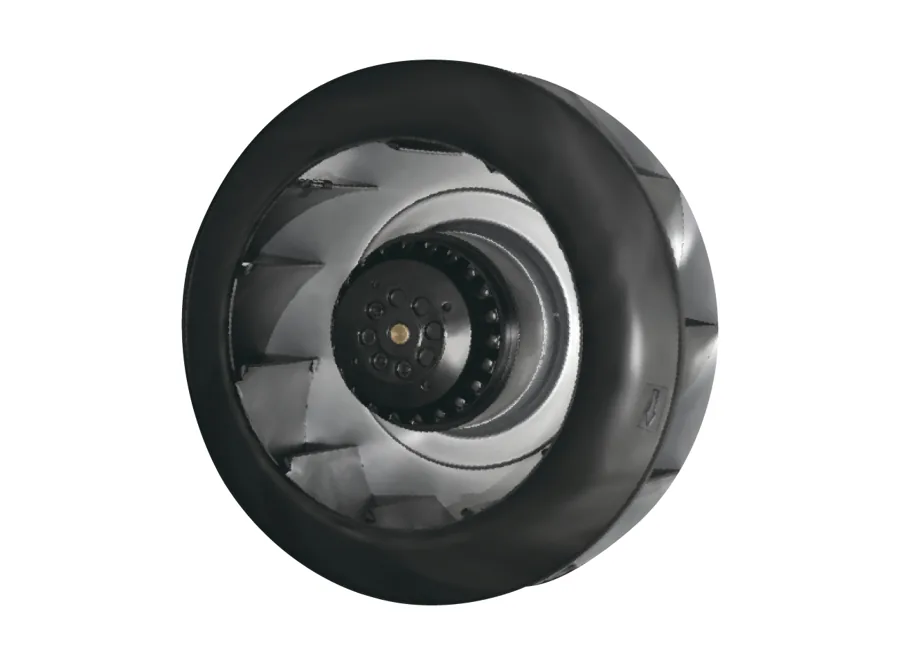

LEIPOLE250FLW2: 1524m³/h Centrifugal Blowers 220V, PA6+GF Impeller LP-250FLW2
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

250FLW2: 1524m³/h Centrifugal Blowers 220V, PA6+GF Impeller

SKULP-250FLW2

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow1452/1524m³/h
Rated Current0.59/0.76 A
Input Power131/173 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 1452/1524m³/h; rated current 0.59/0.76 A; input power 131/173 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow1452/1524m³/h

Rated Current0.59/0.76 A

Input Power131/173 W

DimensionØ250×93.9mm

Model250FLW2

Part Number250FLW2

Order Code2019.011

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
250FLW2
Part Number
250FLW2
Order Code
2019.011
Rate Voltage
220V
Air Flow
1452/1524m³/h
Speed
2650/2970 r/min
Static Pressure
580/750PA
Rated Current
0.59/0.76 A
Input Power
131/173 W
Motor Type
Capacitor Start Induction Motor
Noise Level
74/76 dB
Dimension
Ø250×93.9mm
Weight
2700g
Impeller
PA6+GF
Operating temperature
-40°C~+80°C
Humidity range
0%~95%
