LEIPOLELEIPOLE 225FLW2HRP EC Centrifugal Fan, IP44, RD+PWM, Industrial Enclosure Cooling LP-225FLW2HRP
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

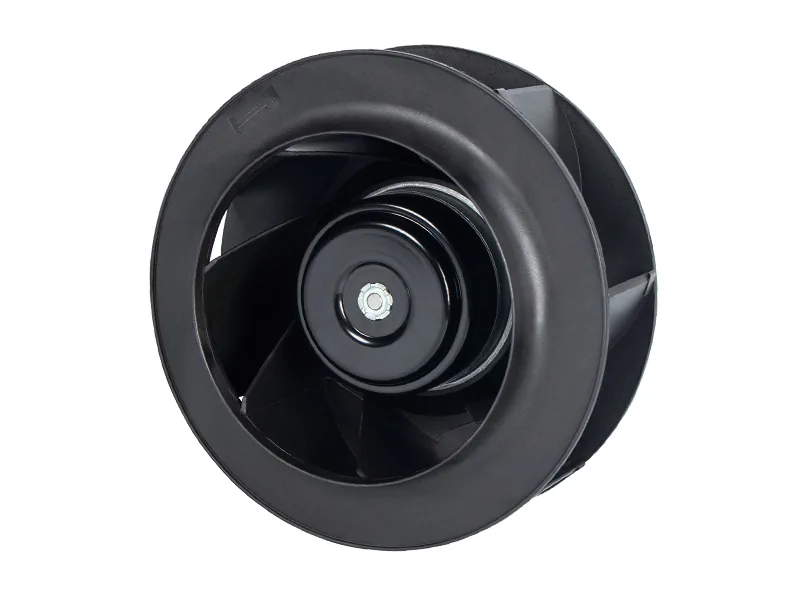

LEIPOLE 225FLW2HRP EC Centrifugal Fan, IP44, RD+PWM, Industrial Enclosure Cooling

SKULP-225FLW2HRP

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (WxH)Ø225x125mm
Rated Voltage (V)230
Input Power (W)132.5 Max: 180
Air Flow (m³/h)1200
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 225FLW2HRP is a heavy-duty centrifugal fan from the FLW series. It delivers stable forced ventilation and efficient heat dissipation for large industrial electrical enclosures, medium-scale HVAC systems, and high-power electrical equipment. The integrated structure ensures consistent airflow and reliable long-hour operation in demanding industrial environments. Core Product Features Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety. Ball bearing structure reduces operational wear and supports extended service life. IP44 ingress protection rating, compatible with a wide temperature and humidity range. Compliant with IEC61858 Grade ….

Key data: dimensions Ø225x125mm; rated voltage 230; input power 132.5 Max: 180; air flow 1200.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (WxH)Ø225x125mm

Rated Voltage (V)230

Input Power (W)132.5 Max: 180

Air Flow (m³/h)1200

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60 Hz

CertificationCE

IP ratingIP44

Model225FLW2HRP

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
225FLW2HRP
Order Code
2030.005
Dimensions (WxH)
Ø225x125mm
Motor
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage (V)
230
Frequency (Hz)
50~400
Input Power (W)
132.5 Max: 180
Speed (r/min)
3000
Air Flow (m³/h)
1200
Noise (dB)
76
Weight (g)
1905
Function
RD+PWM
Operation temp & humidity range
-30℃~+65℃ (temperature) 0%~95% (humidity)
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Certification
CE
IP rating
IP44

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-225FLW2HRP

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
