LEIPOLE225FLW2: 200mm centrifugal fan 1338m³/h 220V LP-225FLW2-4838
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

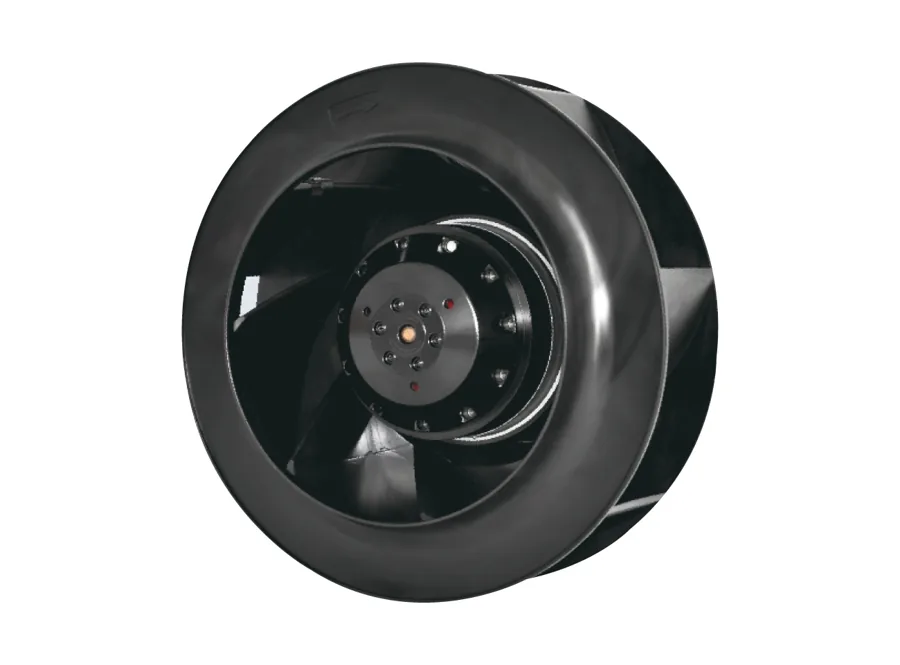

225FLW2: 200mm centrifugal fan 1338m³/h 220V

SKULP-225FLW2-4838

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow1200/1338m³/h
Rated Current0.62/0.74 A
Input Power131/170 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 1200/1338m³/h; rated current 0.62/0.74 A; input power 131/170 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow1200/1338m³/h

Rated Current0.62/0.74 A

Input Power131/170 W

DimensionØ226×101.2mm

Model225FLW2

Part Number225FLW2

Order Code2019.011

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
225FLW2
Part Number
225FLW2
Order Code
2019.011
Rate Voltage
220V
Air Flow
1200/1338m³/h
Speed
2630/2930 r/min
Static Pressure
550/725PA
Rated Current
0.62/0.74 A
Input Power
131/170 W
Motor Type
Capacitor Start Induction Motor
Noise Level
69/71 dB
Dimension
Ø226×101.2mm
Weight
2300g
Impeller
PA6+GF
Operating temperature
-40°C~+80°C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-225FLW2-4838

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
