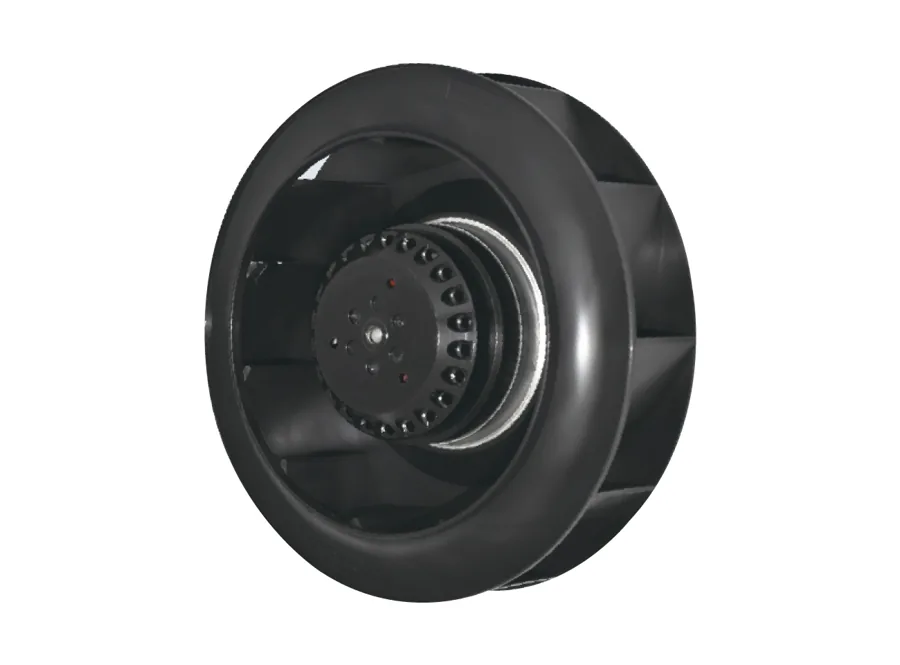

LEIPOLE220FLW3: 1020m³/h 380V AC Centrifugal Fan PP+GF Impeller LP-220FLW3
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

220FLW3: 1020m³/h 380V AC Centrifugal Fan PP+GF Impeller

SKULP-220FLW3

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage380V
Air Flow900/1020m³/h
Rated Current0.29/0.35 A
Input Power100/125 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 380V; air flow 900/1020m³/h; rated current 0.29/0.35 A; input power 100/125 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage380V

Air Flow900/1020m³/h

Rated Current0.29/0.35 A

Input Power100/125 W

DimensionØ221.5×76.8mm

Model220FLW3

Part Number220FLW3

Order Code2019.008

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
220FLW3
Part Number
220FLW3
Order Code
2019.008
Rate Voltage
380V
Air Flow
900/1020m³/h
Speed
2580/2950 r/min
Static Pressure
420/520PA
Rated Current
0.29/0.35 A
Input Power
100/125 W
Motor Type
Capacitor Start Induction Motor
Noise Level
71/74 dB
Dimension
Ø221.5×76.8mm
Weight
1800g
Impeller
PP+GF
Operating temperature
-30 °C~+65 °C
Humidity range
0%~95%
