LEIPOLELEIPOLE 220FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling LP-220FLW2HR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

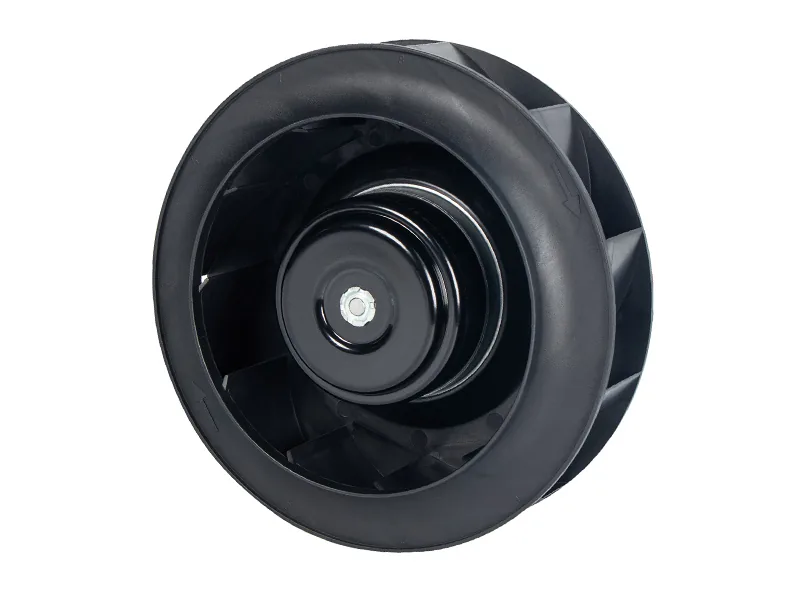

LEIPOLE 220FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

SKULP-220FLW2HR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (WxH)Ø221.5x100mm
Rated Voltage (V)230
Input Power (W)115.1 Max: 150
Air Flow (m³/h)900
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 220FLW2HR is a heavy-duty centrifugal fan from the FLW series. It provides stable forced ventilation and efficient heat dissipation for large industrial electrical enclosures, medium-scale HVAC systems, and high-power electrical equipment. The integrated structure ensures consistent airflow and reliable long-hour operation in demanding industrial environments. Core Product Features Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety. Ball bearing structure reduces operational wear and supports extended service life. IP44 ingress protection rating, compatible with a wide temperature and humidity range. Compliant with IEC61858 Grade ….

Key data: dimensions Ø221.5x100mm; rated voltage 230; input power 115.1 Max: 150; air flow 900.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (WxH)Ø221.5x100mm

Rated Voltage (V)230

Input Power (W)115.1 Max: 150

Air Flow (m³/h)900

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60 Hz

CertificationCE

IP ratingIP44

Model220FLW2HR

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
220FLW2HR
Order Code
2030.012
Dimensions (WxH)
Ø221.5x100mm
Motor
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage (V)
230
Frequency (Hz)
50~400
Input Power (W)
115.1 Max: 150
Speed (r/min)
3200
Air Flow (m³/h)
900
Noise (dB)
76
Weight (g)
1848
Function
RD
Operation temp & humidity range
-40℃~+80℃ (temperature) 0%~95% (humidity)
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Certification
CE
IP rating
IP44

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-220FLW2HR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
