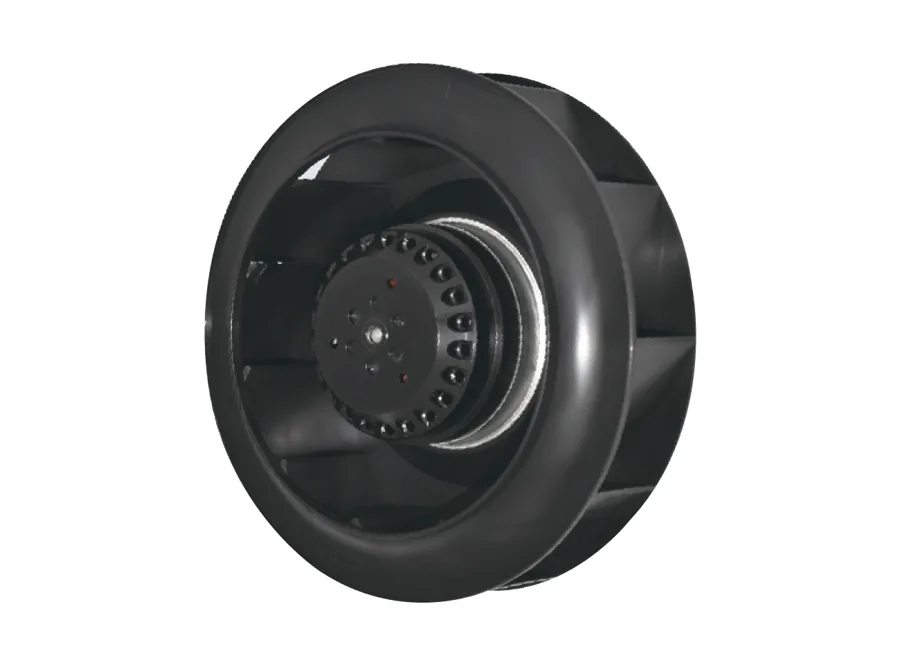

LEIPOLE220FLW2: 1002m³/h AC Centrifugal Fan PP+GF Impeller LP-220FLW2
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

220FLW2: 1002m³/h AC Centrifugal Fan PP+GF Impeller

SKULP-220FLW2

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow1002m³/h
Rated Current0.46/0.51 A
Input Power98/118 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 1002m³/h; rated current 0.46/0.51 A; input power 98/118 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow1002m³/h

Rated Current0.46/0.51 A

Input Power98/118 W

DimensionØ221.5×76.8mm

Model220FLW2

Part Number220FLW2

Order Code2019.007

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
220FLW2
Part Number
220FLW2
Order Code
2019.007
Rate Voltage
220V
Air Flow
1002m³/h
Speed
2570/2920 r/min
Static Pressure
420/520PA
Rated Current
0.46/0.51 A
Input Power
98/118 W
Motor Type
Capacitor Start Induction Motor
Noise Level
71/74 dB
Dimension
Ø221.5×76.8mm
Weight
1800g
Impeller
PP+GF
Operating temperature
-30 °C~+65 °C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-220FLW2

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
