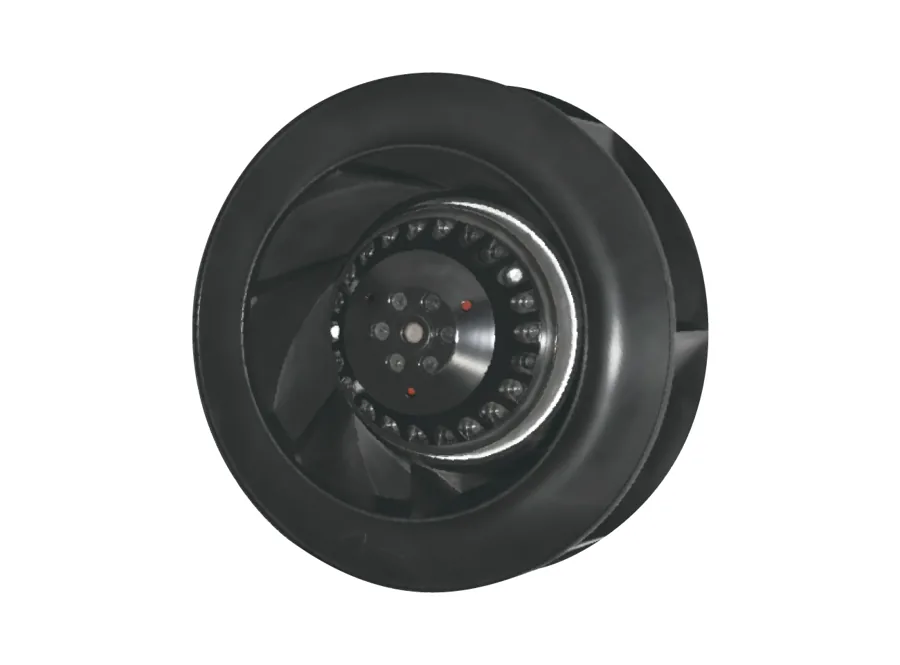

LEIPOLELEIPOLE 190FLW3 — Product Reference LP-190FLW3
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

LEIPOLE 190FLW3 — Product Reference

SKULP-190FLW3

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage380V
Air Flow1170m³/h
Rated Current0.50 A
Input Power160 W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 380V; air flow 1170m³/h; rated current 0.50 A; input power 160 W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage380V

Air Flow1170m³/h

Rated Current0.50 A

Input Power160 W

DimensionØ190x72mm

Model190FLW3

Part Number190FLW3

Order Code2019.006

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
190FLW3
Part Number
190FLW3
Order Code
2019.006
Rate Voltage
380V
Air Flow
1170m³/h
Speed
2600 r/min
Static Pressure
520PA
Rated Current
0.50 A
Input Power
160 W
Motor Type
Capacitor Start Induction Motor
Noise Level
71 dB
Dimension
Ø190x72mm
Weight
1270g
Impeller
PA6+GF
Operating temperature
-40°C~+80°C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-190FLW3

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
