LEIPOLELEIPOLE 190FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling LP-190FLW2HR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

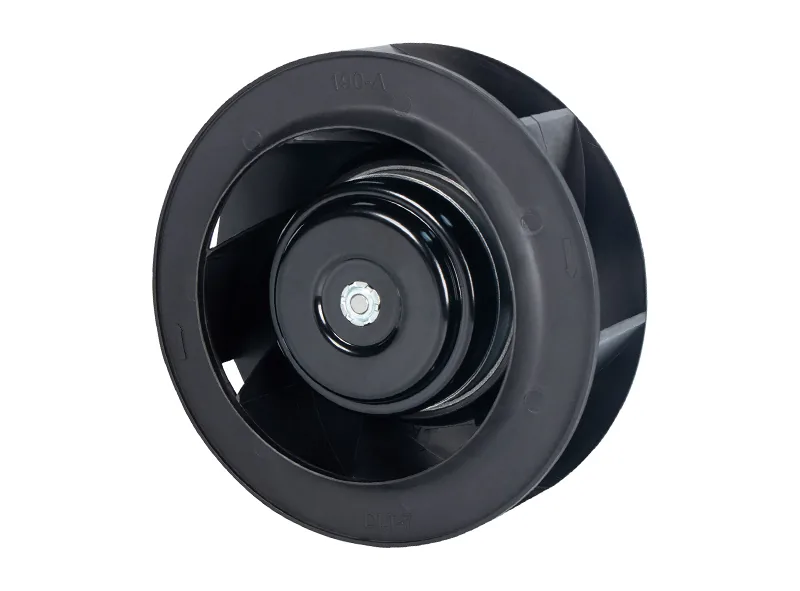

LEIPOLE 190FLW2HR EC Centrifugal Fan, IP44, RD, Industrial Enclosure Cooling

SKULP-190FLW2HR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (WxH)Ø190x105mm
Rated Voltage (V)230
Input Power (W)103.6 Max: 132
Air Flow (m³/h)800
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 190FLW2HR is a robust centrifugal fan from the FLW series. It delivers stable forced ventilation and efficient heat dissipation for industrial electrical enclosures, small HVAC systems, and power equipment. The integrated structure ensures consistent airflow and reliable long-hour operation in demanding industrial environments. Core Product Features Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety. Ball bearing structure reduces operational wear and supports extended service life. IP44 ingress protection rating, compatible with a wide temperature and humidity range. Compliant with IEC61858 Grade F insulation standard with stable ….

Key data: dimensions Ø190x105mm; rated voltage 230; input power 103.6 Max: 132; air flow 800.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (WxH)Ø190x105mm

Rated Voltage (V)230

Input Power (W)103.6 Max: 132

Air Flow (m³/h)800

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60 Hz

CertificationCE

IP ratingIP44

Model190FLW2HR

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
190FLW2HR
Order Code
2030.011
Dimensions (WxH)
Ø190x105mm
Motor
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage (V)
230
Frequency (Hz)
50~400
Input Power (W)
103.6 Max: 132
Speed (r/min)
3600
Air Flow (m³/h)
800
Noise (dB)
72
Weight (g)
1711
Function
RD
Operation temp & humidity range
-40℃~+80℃ (temperature) 0%~95% (humidity)
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Certification
CE
IP rating
IP44

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-190FLW2HR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
Heat-load sizing Fans, air conditioners and heaters sized from your enclosure data.Panel builder supply Components consolidated with the rest of the project order.Project support Submittals and delivery coordinated with your panel builder.
