LEIPOLELEIPOLE 175FLW2HRP EC Centrifugal Fan, IP44, RD+PWM, Industrial Enclosure Cooling LP-175FLW2HRP
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

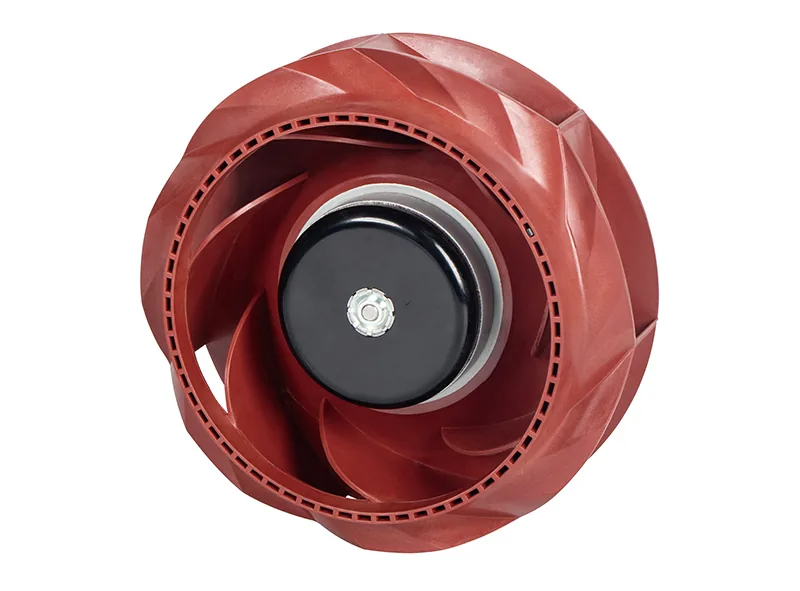

LEIPOLE 175FLW2HRP EC Centrifugal Fan, IP44, RD+PWM, Industrial Enclosure Cooling

SKULP-175FLW2HRP

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (WxH)Ø174.5x69mm
Rated Voltage (V)230
Input Power (W)40.0 Max: 55
Air Flow (m³/h)588
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 175FLW2HRP is a compact EC centrifugal fan from the FLW series. It supports stable forced ventilation and efficient heat dissipation for industrial electrical enclosures, small HVAC systems, and power equipment. The integrated structure ensures steady airflow and consistent long-hour operation in industrial environments. Core Product Features Capacitor start induction motor with built-in automatic recovery thermal protection for overload safety. Ball bearing structure reduces operational wear and supports extended service life. IP44 ingress protection rating, compatible with a wide temperature and humidity range. Compliant with IEC61858 Grade F insulation standard with stable high ….

Key data: dimensions Ø174.5x69mm; rated voltage 230; input power 40.0 Max: 55; air flow 588.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (WxH)Ø174.5x69mm

Rated Voltage (V)230

Input Power (W)40.0 Max: 55

Air Flow (m³/h)588

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60 Hz

CertificationCE

IP ratingIP44

Model175FLW2HRP

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
175FLW2HRP
Order Code
2030.002
Dimensions (WxH)
Ø174.5x69mm
Motor
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage (V)
230
Frequency (Hz)
50~400
Input Power (W)
40.0 Max: 55
Speed (r/min)
3000
Air Flow (m³/h)
588
Noise (dB)
61
Weight (g)
820
Function
RD+PWM
Operation temp & humidity range
-30℃~+65℃ (temperature) 0%~95% (humidity)
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Certification
CE
IP rating
IP44

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-175FLW2HRP

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
