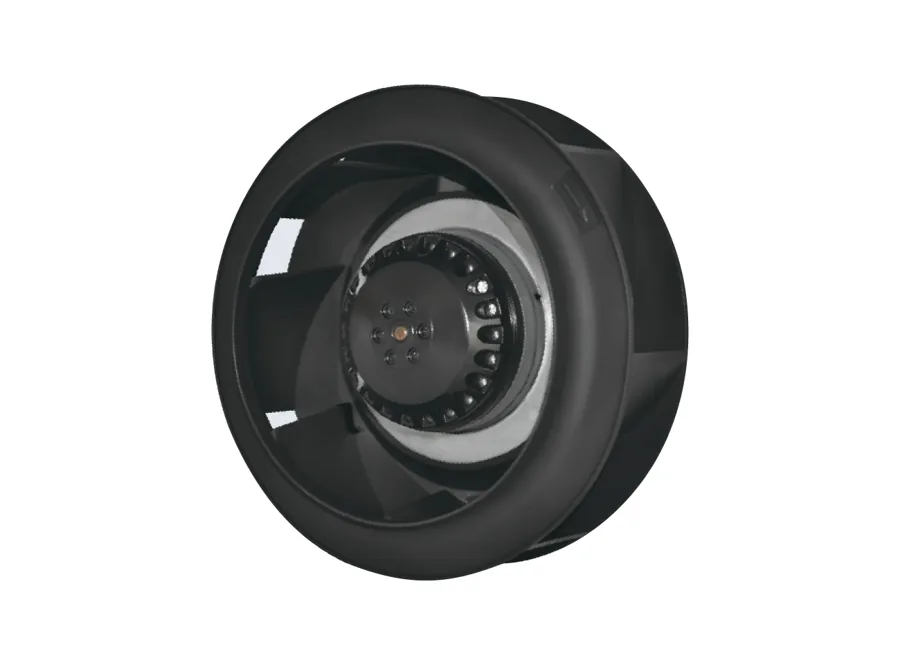

LEIPOLE170FLW2: 450m³/h Centrifugal Fans and Blowers, 220V LP-170FLW2
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

170FLW2: 450m³/h Centrifugal Fans and Blowers, 220V

SKULP-170FLW2

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow450m³/h
Rated Current0.30A
Input Power60W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 450m³/h; rated current 0.30A; input power 60W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow450m³/h

Rated Current0.30A

Input Power60W

DimensionØ175×69.1mm

Model170FLW2

Part Number170FLW2

Order Code2019.003

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
170FLW2
Part Number
170FLW2
Order Code
2019.003
Rate Voltage
220V
Air Flow
450m³/h
Speed
2400 r/min
Static Pressure
275PA
Rated Current
0.30A
Input Power
60W
Motor Type
Capacitor Start Induction Motor
Noise Level
56dB
Dimension
Ø175×69.1mm
Weight
1240g
Impeller
PA6+GF
Operating temperature
-40°C~+80°C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-170FLW2

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
