LEIPOLE133FLW3: 330m³/h Centrifugal Blower Fan, 380V LP-133FLW3
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

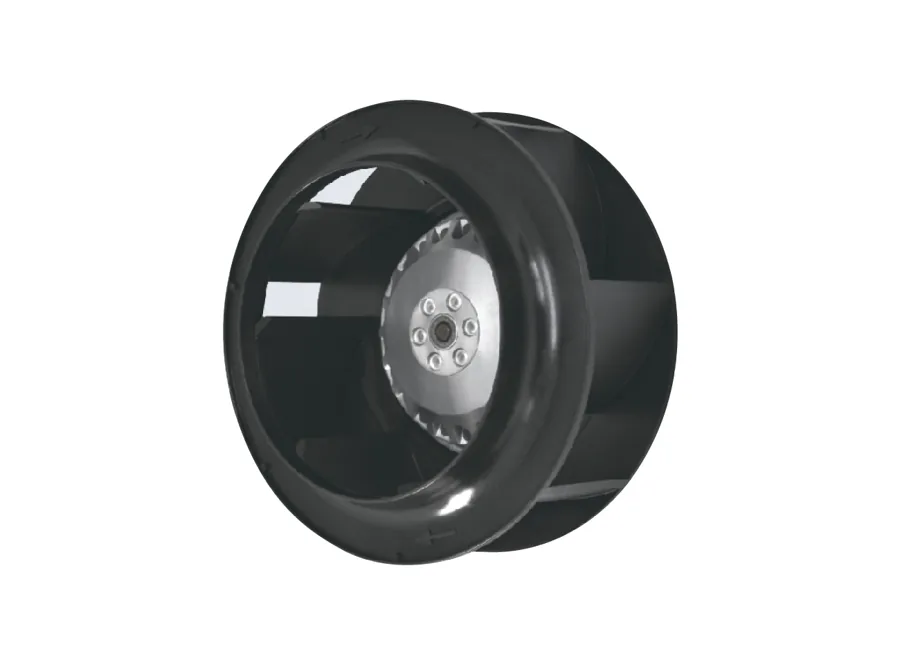

133FLW3: 330m³/h Centrifugal Blower Fan, 380V

SKULP-133FLW3

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage380V
Air Flow330m³/h
Rated Current0.13/0.14A
Input Power34/35W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 380V; air flow 330m³/h; rated current 0.13/0.14A; input power 34/35W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage380V

Air Flow330m³/h

Rated Current0.13/0.14A

Input Power34/35W

DimensionØ93.5×76.8mm

Model133FLW3

Part Number133FLW3

Order Code2019.002

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
133FLW3
Part Number
133FLW3
Order Code
2019.002
Rate Voltage
380V
Air Flow
330m³/h
Speed
2670 r/min
Static Pressure
240PA
Rated Current
0.13/0.14A
Input Power
34/35W
Motor Type
Shaded Pole Motor
Noise Level
60dB
Dimension
Ø93.5×76.8mm
Weight
660g
Impeller
PP+GF
Operating temperature
-30 °C~+55 °C
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-133FLW3

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
