LEIPOLELEIPOLE 133FLW2HRP 133.5x81mm EC Centrifugal Fan, 230V AC LP-133FLW2HRP
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

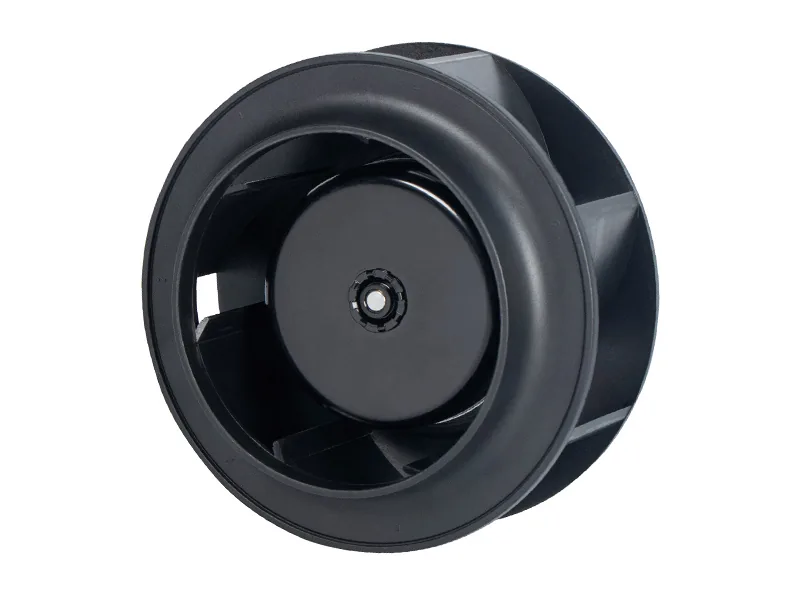

LEIPOLE 133FLW2HRP 133.5x81mm EC Centrifugal Fan, 230V AC

SKULP-133FLW2HRP

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (WxH)Ø133.5x81mm
Rated Voltage (V)230
Input Power (W)29.3 Max: 36
Air Flow (m³/h)300
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 133FLW2HRP is a compact high-airflow centrifugal fan from the 133FLW series. It is engineered for stable forced ventilation and efficient heat evacuation for industrial electrical enclosures, small-scale HVAC systems and power equipment. Its robust integrated structure delivers steady airflow output and reliable continuous operation under harsh industrial environmental conditions. Core Product Features Capacitor Start Induction Motor drive with built-in automatic recovery thermal protection for motor overload safety Premium ball bearing structure, ensuring low operational wear and long continuous service life IP44 ingress protection rating, with wide adaptive temperature & humidity ….

Key data: dimensions Ø133.5x81mm; rated voltage 230; input power 29.3 Max: 36; air flow 300.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (WxH)Ø133.5x81mm

Rated Voltage (V)230

Input Power (W)29.3 Max: 36

Air Flow (m³/h)300

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60 Hz

CertificationCE

IP ratingIP44

Model133FLW2HRP

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
133FLW2HRP
Order Code
2030.001
Dimensions (WxH)
Ø133.5x81mm
Motor
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage (V)
230
Frequency (Hz)
50~400
Input Power (W)
29.3 Max: 36
Speed (r/min)
3800
Air Flow (m³/h)
300
Noise (dB)
63
Weight (g)
740
Function
RD+PWM
Operation temp & humidity range
-40℃~+80℃ (temperature) 0%~95% (humidity)
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Certification
CE
IP rating
IP44
