LEIPOLELEIPOLE 133FLW2HR EC Centrifugal Fan, IP44, -40℃~+80℃, Industrial Enclosure Cooling LP-133FLW2HR
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

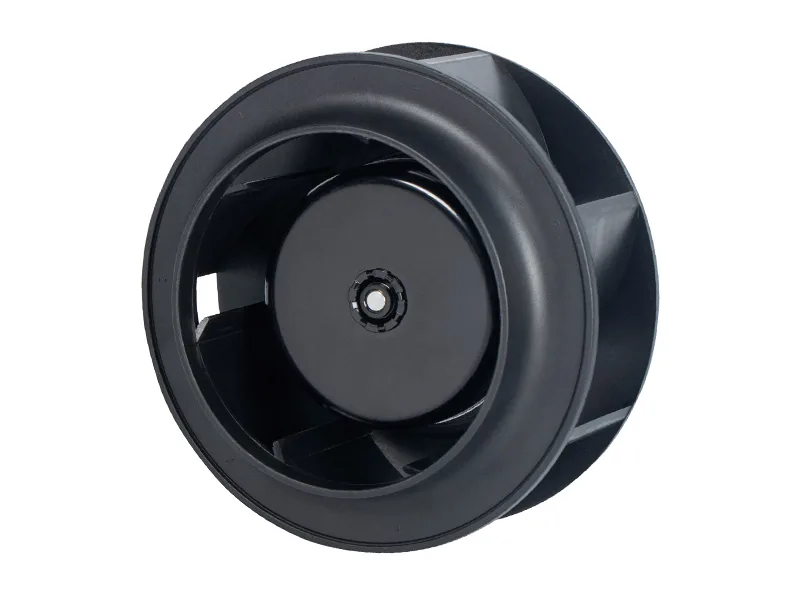

LEIPOLE 133FLW2HR EC Centrifugal Fan, IP44, -40℃~+80℃, Industrial Enclosure Cooling

SKULP-133FLW2HR

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions (WxH)Ø133.5x81mm
Rated Voltage (V)230
Input Power (W)29.3 Max: 36
Air Flow (m³/h)300
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE 133FLW2HR is a compact EC centrifugal fan belonging to the 133FLW series. It provides stable forced ventilation and efficient heat dissipation for industrial electrical enclosures, small HVAC systems, and power equipment. Its sturdy integrated structure ensures steady airflow output and reliable long-term operation in harsh industrial environments. Core Product Features Built-in capacitor start induction motor with automatic recovery thermal protection to prevent motor overload. Equipped with ball bearings to reduce wear and support extended service life. IP44 ingress protection, suitable for a wide temperature and humidity range. Compliant with IEC61858 Grade F insulation standard ….

Key data: dimensions Ø133.5x81mm; rated voltage 230; input power 29.3 Max: 36; air flow 300.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions (WxH)Ø133.5x81mm

Rated Voltage (V)230

Input Power (W)29.3 Max: 36

Air Flow (m³/h)300

Withstand VoltageAC 1,800V, 1 min at 0.5mA, 50/60 Hz

CertificationCE

IP ratingIP44

Model133FLW2HR

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
133FLW2HR
Order Code
2030.009
Dimensions (WxH)
Ø133.5x81mm
Motor
Capacitor Start Induction Motor
Bearing
Ball
Rated Voltage (V)
230
Frequency (Hz)
50~400
Input Power (W)
29.3 Max: 36
Speed (r/min)
3800
Air Flow (m³/h)
300
Noise (dB)
63
Weight (g)
740
Function
RD
Operation temp & humidity range
-40℃~+80℃ (temperature) 0%~95% (humidity)
Protection
Motor Internal with automatic recovery thermal protection
Withstand Voltage
AC 1,800V, 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F
Certification
CE
IP rating
IP44

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-133FLW2HR

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
