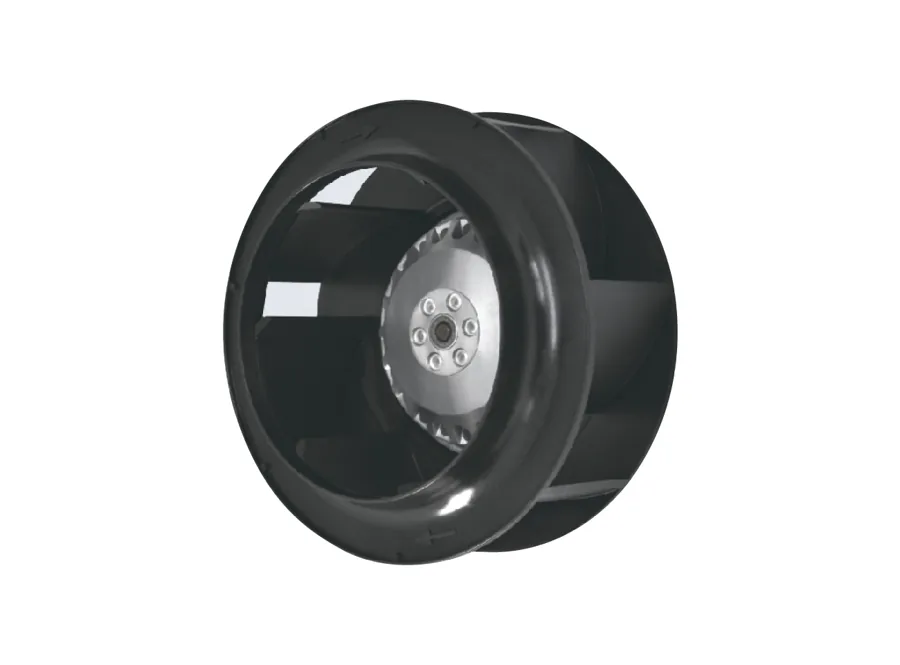

LEIPOLE133FLW2: 270m³/h Backward Centrifugal Fan, 220V LP-133FLW2
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

133FLW2: 270m³/h Backward Centrifugal Fan, 220V

SKULP-133FLW2

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rate Voltage220V
Air Flow270m³/h
Rated Current0.11A
Input Power23W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Centrifugal Fans & Blowers Industrial Ventilation Solutions -Professional centrifugal blower fan with Shaded Pole Motor technology: Innovative PP+GF impeller design ensures optimal performance and service life -All-round environmental adaptability: Operating temperature range: -30°C to +55°C Humidity tolerance range: 0% to 95% -Advanced motor protection features: Impedance protection system Automatic thermal recovery protection Withstand voltage: AC 1,800V (1 minute, 0.5mA, 50/60 Hz) Industrial grade insulation in accordance with IEC61858 Grade B standard.

Key data: rate voltage 220V; air flow 270m³/h; rated current 0.11A; input power 23W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rate Voltage220V

Air Flow270m³/h

Rated Current0.11A

Input Power23W

DimensionØ93.5×76.8mm

Model133FLW2

Part Number133FLW2

Order Code2019.001

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
133FLW2
Part Number
133FLW2
Order Code
2019.001
Rate Voltage
220V
Air Flow
270m³/h
Speed
2800 r/min
Static Pressure
185PA
Rated Current
0.11A
Input Power
23W
Motor Type
shaded pole
Noise Level
58dB
Dimension
Ø93.5×76.8mm
Weight
660g
Impeller
PP+GF
Operating temperature
-30℃~55℃
Humidity range
0%~95%

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-133FLW2

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
