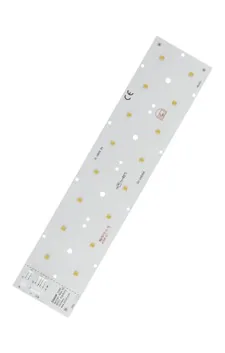

Inventronics PL Brick LED module series

Name: Inventronics PL Brick LED module series
Brand: Inventronics
SKU: INV-PL-BRICK

SKUINV-PL-BRICK

Inventronics LED modules & engines · Power, drivers & controls. Specified, quoted and supplied by Project Supplies for commercial projects.

Output power760–800 W

Several color temperatures1,800 K, 2,200K, 2,700 K, 3,000 K,

Initial color consistency≤ 5 SDCM

PL Brick HPfocused on combination of high robustness and high lumen maintenance

Price on requestQuoted for your configuration and quantity.

Technical clarificationCompiled from the supplied Inventronics Lighting Systems product overview catalogue (page 51). Merged table cells are left blank as printed. Ratings and certifications are supplier claims; confirm the exact model datasheet before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

LED modules & engines

PL Brick is an LED Module series for Outdoor lighting applica- tion based on the Zhaga Standard Different configurations based on LED quantities, CCT, CRI, LED Technology are available. Complying with Zhaga Book 15 (IP00 version) and Book 19 (IP66 version with dedicated optics) Furthermore, PL Brick is also available with 2 different LED Strings for dual channels systems and integration into Tunable White applications.

Key data: output power 760–800 W; several color temperatures 1,800 K, 2,200K, 2,700 K, 3,000 K,; initial color consistency ≤ 5 SDCM; pl brick hp focused on combination of high robustness and high lumen maintenance.

This record covers 5 catalogue models; the full model table is listed below and in the specification sheet. Tell us the exact model in your RFQ.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Output power760–800 W

Several color temperatures1,800 K, 2,200K, 2,700 K, 3,000 K,

Initial color consistency≤ 5 SDCM

PL Brick HPfocused on combination of high robustness and high lumen maintenance

PL Brick HP HEfocused on combination of high efficiency and high lumen output

Specifications

The technical details.

Download specification sheet

Product type: LED module
Applications (catalogue): Street & area, Industrial
Output power: 760–800 W
Several color temperatures: 1,800 K, 2,200K, 2,700 K, 3,000 K,
Initial color consistency: ≤ 5 SDCM
PL Brick HP: focused on combination of high robustness and high lumen maintenance

PL Brick HP HE: focused on combination of high efficiency and high lumen output
PL Brick HP UHE: focused on combination of high efficiency, high lumen output and improvement of the H2S Robustness
Key features: High-performance module for outdoor and street lighting ; Dimensions aligned with Zhaga book 15 and 19 ; Compatible with third party optics, e.g. from LEDIL, BJB ; High module efficiency for demanding lighting solutions ; Thermal monitoring with NTC on LED Module ; Several color temperatures: 1,800 K, 2,200K, 2,700 K, 3,000 K,
Models: EFM-800Q/T, NFM-760Q，NSM-1K2Q/1K5Q, PU-20Kx10KTxx, PU- 20KS10KHT, PS-20KS10KHT
Model count: 5

Models & variants
