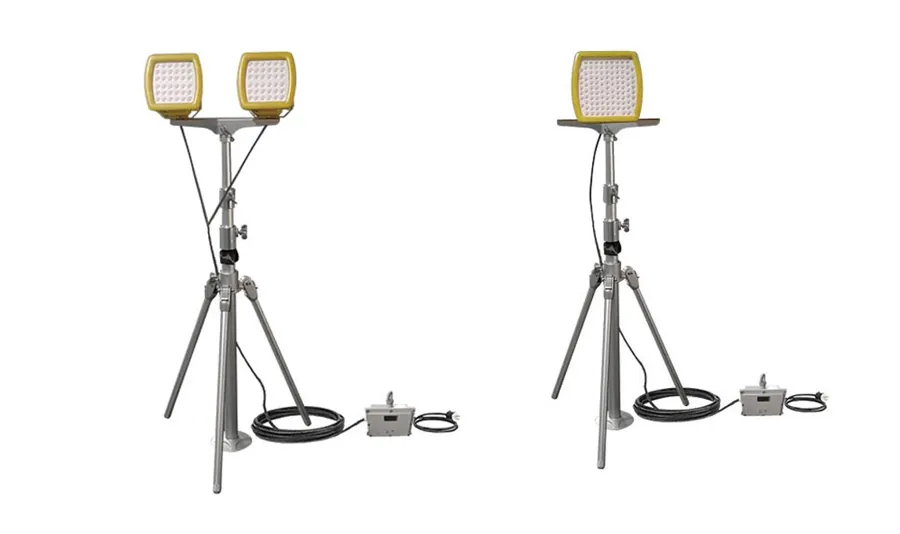

Portable Explosion Proof Lighting - Height Adjustable

Name: Portable Explosion Proof Lighting - Height Adjustable
Brand: CESP
SKU: CESP-J-191

SKUCESP-J-191

CESP Ex portable & hand lamps · Explosion-proof lighting. Specified, quoted and supplied by Project Supplies for commercial projects.

Hazardous-area schemeIECEx / ATEX (zones per Ex marking)

Power80W / 160W

Input voltageAC100-240/277V, 50/60Hz

Luminous flux9600lm / 19200lm

Price on requestQuoted for your configuration and quantity.

Technical clarificationHazardous-area ratings, Ex markings and certificate references are as published by CESP and are not independently verified. Confirm the certificate, marking and conditions of use for the exact model against the area classification before ordering. In Australia, hazardous-area equipment normally requires IECEx or ANZEx certification, and installation and inspection must follow AS/NZS 60079 by competent persons.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Ex portable & hand lamps

Explosion-proof portable & hand lamps · IECEx / ATEX (zones per Ex marking). 80W / 160W · 9600lm / 19200lm · IP66 · -20°C to +40°C.

Key data: hazardous-area scheme IECEx / ATEX (zones per Ex marking); power 80W / 160W; input voltage AC100-240/277V, 50/60Hz; luminous flux 9600lm / 19200lm.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Hazardous-area schemeIECEx / ATEX (zones per Ex marking)

Power80W / 160W

Input voltageAC100-240/277V, 50/60Hz

Luminous flux9600lm / 19200lm

Luminous efficacyup to 130lm/W±5

Colour temperature2700K - 6500K (Optional)

Beam angle120°

IP ratingIP66

Specifications

The technical details.

Download specification sheet

Hazardous-area scheme: IECEx / ATEX (zones per Ex marking)
Collection: Ex portable & hand lamps
Series: CES-J
Power: 80W / 160W
Input voltage: AC100-240/277V, 50/60Hz
Luminous flux: 9600lm / 19200lm
Luminous efficacy: up to 130lm/W±5
Colour temperature: 2700K - 6500K (Optional)
Beam angle: 120°
IP rating: IP66

Operating temperature: -20°C to +40°C
Power factor: 0.97
LED package: 3030
LED driver: Meanwell HLG series
Housing: Aluminum alloy (ADC12 )
Lens: tempered glass
Cable entry: M25Χ1.5 or NPT 3/4”-14
Warranty (as published): 5 years warranty
Ex marking (as published): EX II 2G Ex eb mb op is IIC T4 Gb; EX II 2D Ex op is tb IIIC T95°C Db; Ex ec IIC T4 Gc
Certificate reference (as published): Certify No：IEP 19ATEX 0714; Certify No：IECEx UL 18.0046
