CESPCES-EX-LN-02N Marine Linear Light CESP-EX-LN-02N-329
Ex linear & fluorescent replacementHover to zoom

CESP · Ex linear & fluorescent replacement

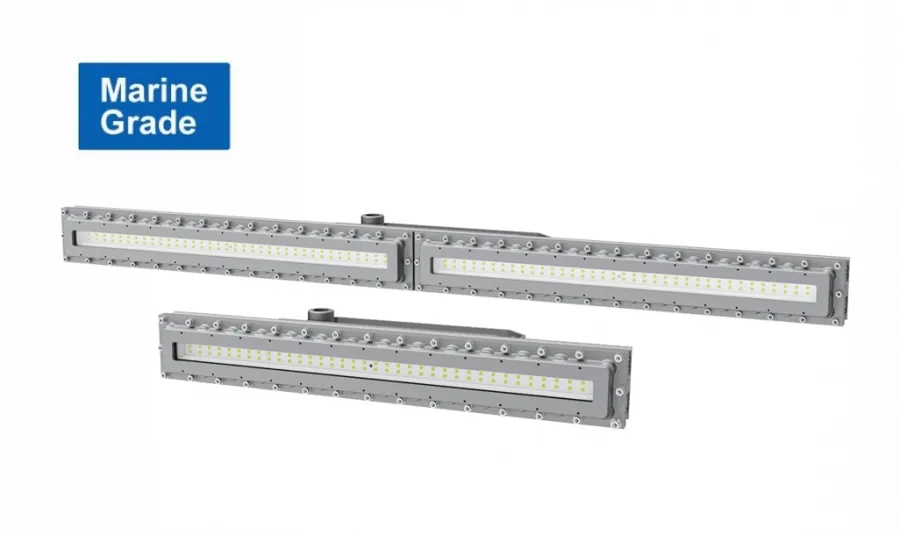

CES-EX-LN-02N Marine Linear Light

SKUCESP-EX-LN-02N-329

CESP Ex linear & fluorescent replacement · Explosion-proof lighting. Specified, quoted and supplied by Project Supplies for commercial projects.

Hazardous-area schemeMarine, with hazardous-location variants
Power20W – 50W
Input voltageAC100-277V / 50-60Hz
Luminous efficacyup to 130 lm/W
Price on requestQuoted for your configuration and quantity.
Technical clarificationHazardous-area ratings, Ex markings and certificate references are as published by CESP and are not independently verified. Confirm the certificate, marking and conditions of use for the exact model against the area classification before ordering. In Australia, hazardous-area equipment normally requires IECEx or ANZEx certification, and installation and inspection must follow AS/NZS 60079 by competent persons.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Ex linear & fluorescent replacement

Explosion-proof linear & fluorescent replacement · Marine, with hazardous-location variants. 20W – 50W · IP66 · -40°C to +55°C.

Key data: hazardous-area scheme Marine, with hazardous-location variants; power 20W – 50W; input voltage AC100-277V / 50-60Hz; luminous efficacy up to 130 lm/W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Hazardous-area schemeMarine, with hazardous-location variants

Power20W – 50W

Input voltageAC100-277V / 50-60Hz

Luminous efficacyup to 130 lm/W

IP ratingIP66

SeriesCES-EX-LN-02N

Operating temperature-40°C to +55°C

HousingDie-cast aluminum housing + tempered glass

Specifications

The technical details.

Download specification sheet
Hazardous-area scheme
Marine, with hazardous-location variants
Collection
Ex linear & fluorescent replacement
Series
CES-EX-LN-02N
Power
20W – 50W
Input voltage
AC100-277V / 50-60Hz
Luminous efficacy
up to 130 lm/W
IP rating
IP66
Operating temperature
-40°C to +55°C
Housing
Die-cast aluminum housing + tempered glass

Documents

Specification sheet & source.

Project Supplies specification sheet

CESP-EX-LN-02N-329

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-05CESP
Open specification sheet

Technical source

CESP

Checked 2026-10-05. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
Certificate check We obtain the certificate for the exact model before quoting.Ex accessories Cable glands and junction boxes sourced on request.Project support Documentation and delivery coordinated with your Ex contractor.
